small switch
| Payment Terms: | T/T |
| Place of Origin: | Shanghai, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Features:
good repeatability
hermetic separation of electrical and hydraulic components
low pressure loss
not include the bellows
Metering substances: water gas/air oil
Please indicate your metering substance with your order.
Application:
The WFS-23 can be widely used in petrochemical industry\water treatment for environmental protection\welding equipment \laser equipment and some other systems for monitoring.
Technical parameters:
Working temperature: -30~125℃
Storage temperature: -30~85℃
Average pressure loss: 0.01bar Q.at max
Output: SPST magnetic switch N/O or N/C (please indicate with your order)
Magnetic switch: 0.5A(max)\110VAC/DC\50W(max)
Cable: standard 0.5m, 2×0.3mm
Pressure: 30bar, 100bar for custom-made
Protection class: IP-65
WFS230..SC material: Body: stainless steel
Paddle: stainless steel
WFS230..SA material: Body: stainless steel
Piston: plastic
Spring: stainless steel
Overview:

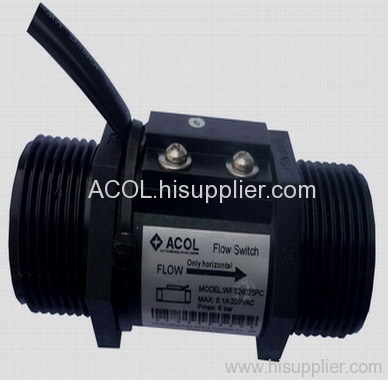

WFS 23 small size flow switch with high performance, equip with permanent magnet and work through flow. The operating principle is easy.
